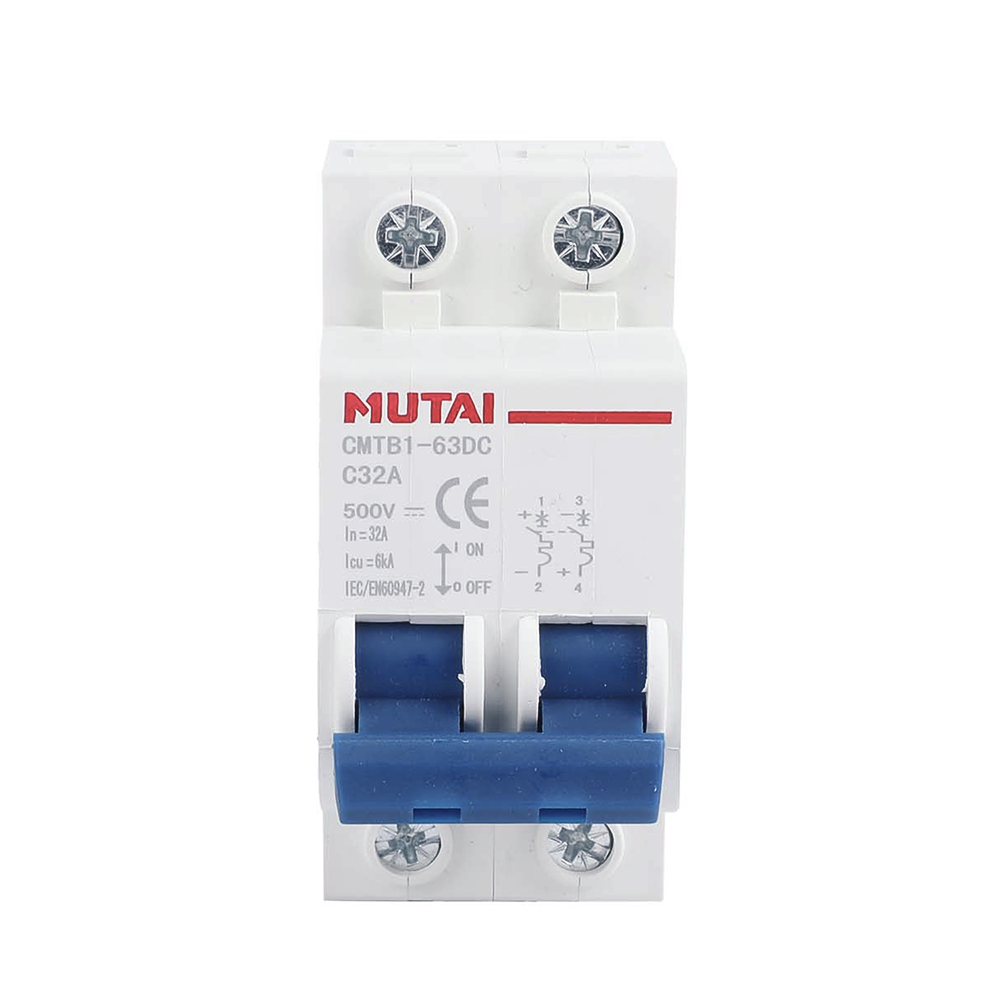

CMTB1-63DC 2P DC MCB Miniature Circuit Breaker
Product Details
CMTB1-63 DC MCB miniature circuit breaker can protect electrical appliances and other load equipment from overload and short-circuit problems, and protect the circuit safety. Most of DC MCB uses some direct current systems like solar power systems, battery backup systems, new energy, etc.
The DC miniature circuit breakers are a reliable and cost-effective solution for protecting DC circuits against electrical faults, and their compact size, fast tripping, and high breaking capacity make them a popular choice in a wide range of applications.
The voltage states of DC MCB is generally from DC 12V-1000V, and the rated current can up to 63A.
| Standard | IEC/EN 60947-2 |
| Rated current In (A) | 1/2/3/4/5/6/8/10/13/16/20/25/32/40/50/63A |
| Poles | 2P |
| Rated voltage Ue (V) | 500V |
| Rated frequency | 50/60Hz |
| Rated short circuit capacity Icn | 6000A |
| Ambient temperature | -20℃~+70℃ |
| Curve type | C |
| Pollution degree | 3 |
| Altitude | ≤ 2000m |
| Maximum wiring capacity | 25 m㎡ |
| Installation | 35mm DIN Rail |
| Line incoming type | Top |
Advantage
1.Fast Tripping: DC MCBs are designed to trip quickly in the event of an electrical fault, which helps to prevent damage to equipment and wiring.
2.High Breaking Capacity: DC MCBs are available in a range of breaking capacities, which means they can handle high levels of current without tripping.
3.Reliable Performance: DC MCBs are designed to provide reliable and consistent performance over a long service life, which helps to reduce maintenance and replacement costs.
4.Easy Installation: DC MCBs are designed for easy installation and can be mounted on DIN rails or directly onto a panel.

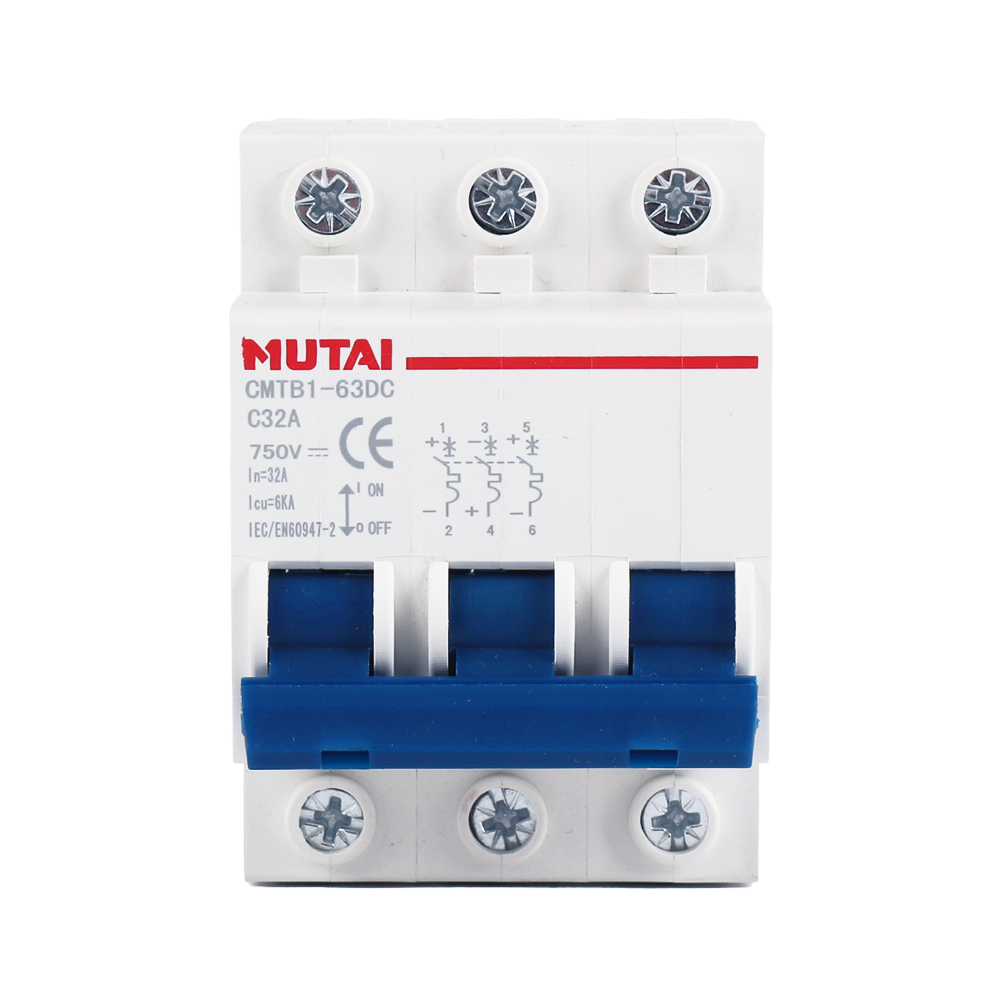

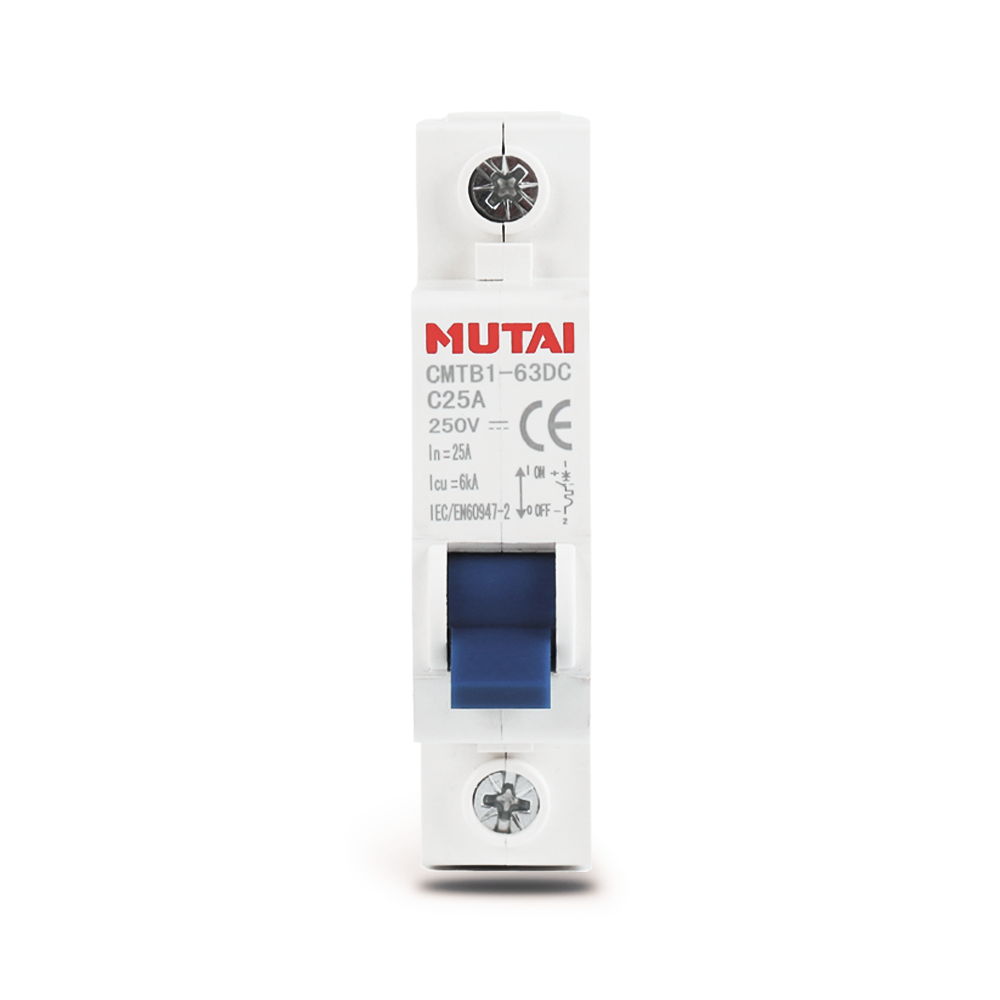

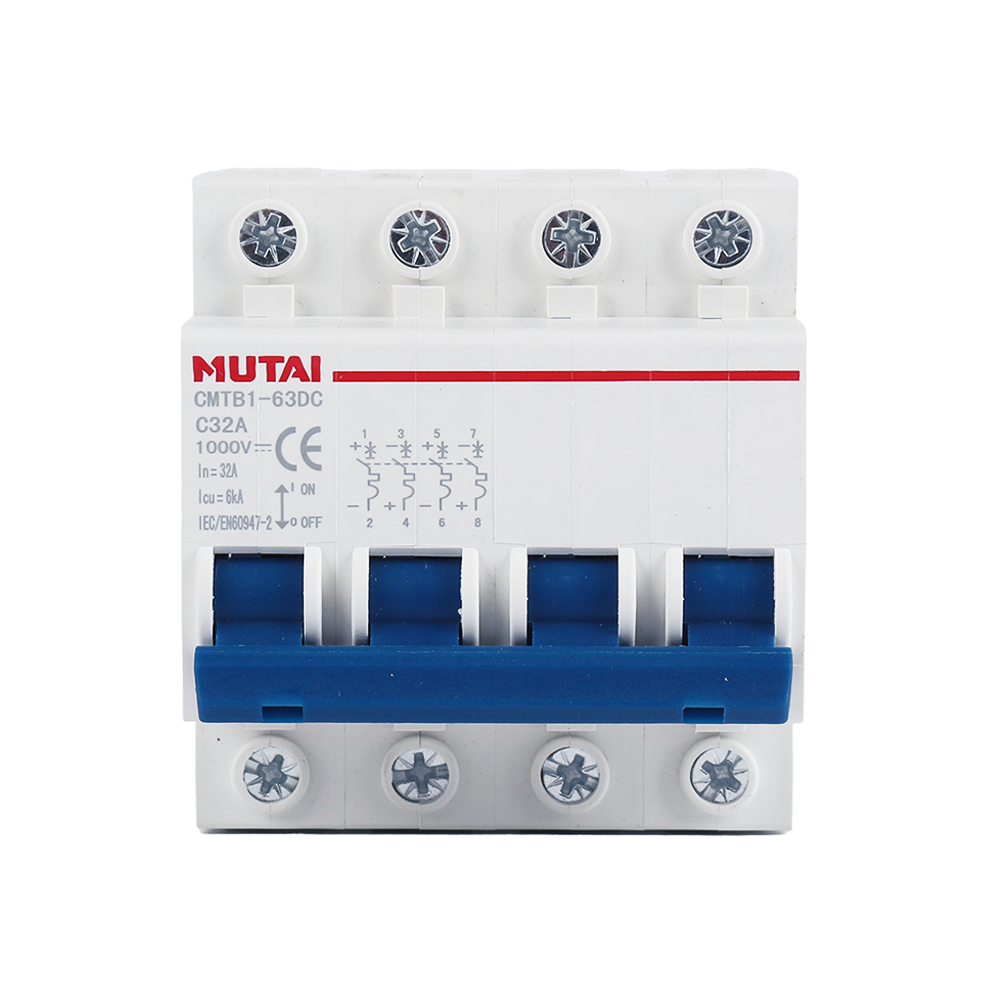

Poles
Application
The DC MCB Miniature circuit breakers MCB are widely used in some direct current systems like new energy, solar PV, etc.
Others
Packaging
6 pcs per inner box, 120 pcs per outer box .
Dimension per outer box: 41*21.5*41.5 cm
Q & C
With ISO 9001, ISO14001 management system certificates, the products are qualified by international certificates CCC, CE, CB.
Main Market
MUTAI Electric focus on Middle East, Africa, South East Asia, South America, Russia Market.
Why choose us
1. With more than 10 years experience of producing products of MCB, MCCB, ACB, RCBO, RCCB, ATS, Contactor... etc.
2.Completed industrial chain from component production to complete products assembly, testing and under routine control.
3.With ISO 9001, ISO14001 management system certificates, the products are qualified by international certificates CCC, CE, CB.
4.Professional technical team, can provide OEM and ODM service , can supply competitive price.
5.Fast delivery time and good after-sale service.
