MUTAI LGX3 Adjustable 4P 5 Display 110V 220V ATS 63A Dual Power Automatic Transfer Switch

Short Description:

This Intelligent transfer switch is designed to supply an single phase 220V load from different power supply, in order to maintain uninterrupted power supply of essential single phase load. According to voltage presence &voltage quality on phases, it will automatically select the optimum power supply and switch the single phase load supply to it.
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-9.5% adjustable.
8. Current calibration: Current +- 9.5% adjustable

Send email to us

Product Detail

Product Tags

Product Details

■ Product functions

Supply terminals	N,L1,L2,L3
Rated supply voltage	AC 3*110V(N-L1/L2/L3)
Rated frequency	40/50/60/70Hz
Umax setting range	110-300V
Umin setting range	80-220V
Auto-reclosing delay(Ton)	1-600s
Return delay to priority phase	1-600s
Switch delay to reserve phases	<0.2s
Voltage hysteresis	5V
Overvoltage trip delay	0.1s;≥350V: 0.02s
Undervoltage trip delay	0.1s;≥350V: 0.02s
Voltage accuracy	<1%
Max. operating phase voltage	350V
Rated oporating current	63A
Max. operating current	80A
Pollution degree	3
Electrical life	100000
Mechanical life	1000000
Altitude	≤2000m
Ambient temperature	-25℃ ~ +50℃
Permissable relative humidity	≤50% at 40℃( without condensation)
Storage temperature	-25℃ ~ +55℃
Conductor size	0.5mm² ~ 1mm²

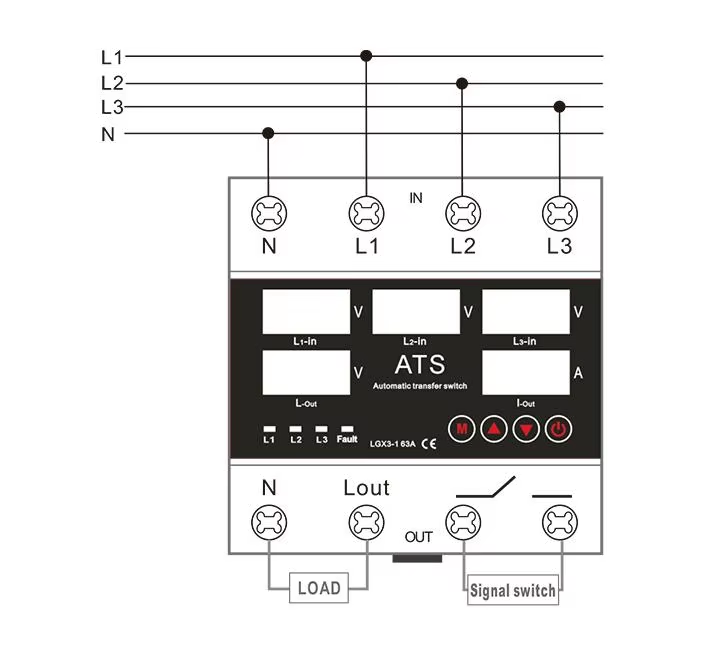

■ Interface

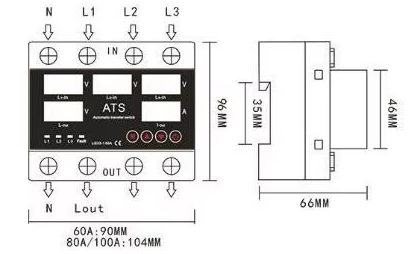

■ Dimensions

Application

Others

Packaging

LGX3: 1 PC per inner box
