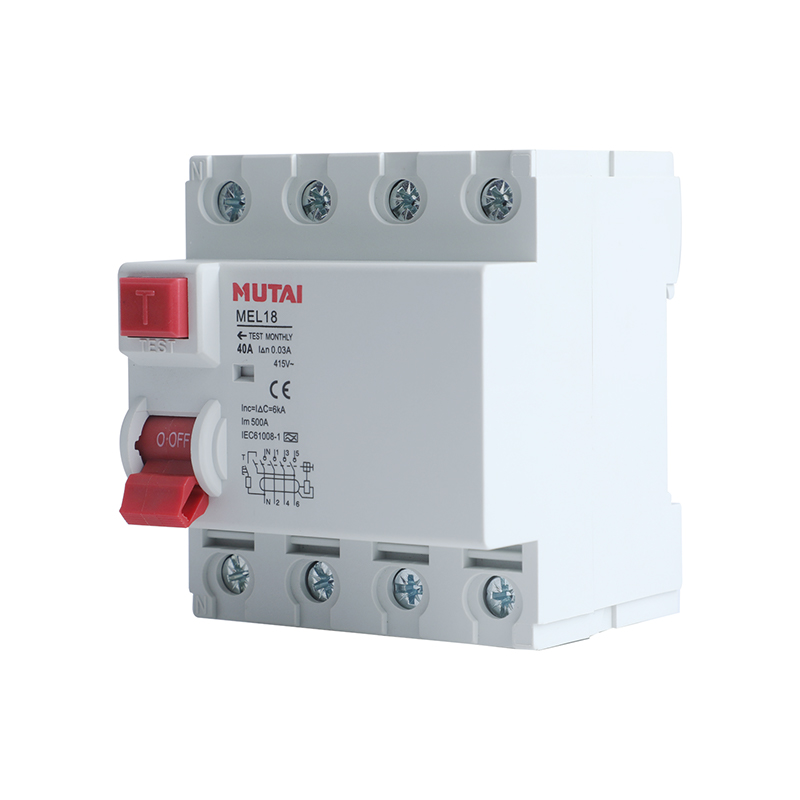

The leakage protector is also called a Residual Current Circuit Breaker (RCCB), and its structural composition plays a vital role in ensuring the safety of electricity. This article aims to provide an overview of the components of a leakage protector and explain how it works.
The leakage protector mainly consists of three basic parts: detection element, intermediate amplification link and operation actuator. Each of these components helps the earth leakage protector function efficiently and effectively.
The detection component is the first part of the leakage protector and consists of a zero sequence transformer. This transformer is responsible for detecting and signaling any leakage current. It acts as a sensor, continuously monitoring the current in the circuit. If a current leakage is detected, the transformer immediately alerts the protector by generating a signal.
The second part of the leakage protector is the amplification link. This component amplifies weak leak signals detected by the detection component. Depending on the device, the amplification component can be mechanical or electronic. Its function is to enhance the strength of the leakage signal, thereby facilitating the follow-up action of the protector.
Finally, the operating actuator receives the signal from the amplification link and initiates protective action. After receiving the signal, the main switch of the protector switches from the closed position to the open position. This effectively cuts off the power supply, preventing further current flow. The operating actuator acts as a tripping element to disconnect the protected circuit from the power grid.
The principle basis for judging whether there is leakage lies in the ability of the leakage protector to detect the “inflow” and “outflow” of current. The current in the live wire represents the outflow point of the power supply, and the current in the neutral wire represents the inflow point of the power supply. Under normal circumstances, when there is no leakage in the circuit, the current flowing into and out of the power supply should be equal in magnitude and opposite in direction.
However, in the presence of leakage, the current flowing back into the power supply on the neutral wire becomes less than the current flowing out of the power supply. This difference in current indicates the presence of a leak. When the leakage current reaches or exceeds a certain level (usually 30mA), the leakage protector operates and cuts off the live and neutral wires at the same time.
It is necessary to ensure that the current entering and leaving the switch remains equal to prevent false detection of leakage current. Any deviation from this equilibrium indicates the presence of a leak and triggers a protective action – a trip. Different occasions may require the use of leakage protectors with different sensitivities. It is crucial to select the appropriate leakage protector according to the specific needs of the application.
To sum up, the structure of the leakage protector consists of detection components, amplification links and operation actuators. These components work together to detect leakage current, amplify the signal, and initiate protective action. By understanding the basic principles of leakage detection, it is obvious how important the reliable and efficient operation of the leakage protector is to ensuring electrical safety.
