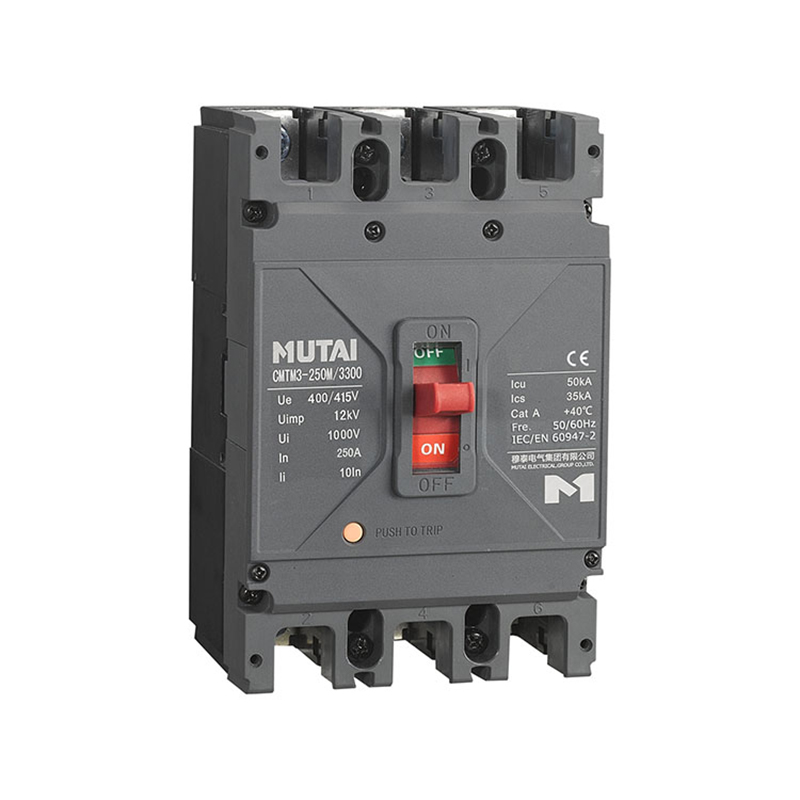

The introduction of the Molded Case Circuit Breaker (MCCB) revolutionized the way we protect circuits and equipment. This innovative device is designed to automatically cut off current flow when it exceeds the trip setting, thereby providing basic protection against overload, short circuit and ground fault. The MCCB is housed in a plastic casing and utilizes plastic insulators to isolate conductors and grounded metal parts. With its wide range of features and options, MCCB is a versatile and reliable solution for a variety of applications.
MCCBs usually contain a thermal-magnetic trip unit, but larger models may be equipped with solid-state trip sensors. These trip units provide the basic function of opening a circuit in the event of a fault. Trips can be divided into two types: thermal magnetic tripping and electronic tripping, allowing users to flexibly choose the appropriate protection according to their specific requirements. Additionally, MCCB is available in a variety of current ratings including 16, 25, 30, 40, 50, 63, 80, 100, 125, 160, 200, 225, 250, 315, 350, 400, 500 and 630A, making it suitable Various load capacities.
One of the main features of the MCCB is its sealed construction within a plastic housing. This design ensures that all components of the molded case circuit breaker are effectively protected from environmental factors, improving the reliability and service life of the equipment. Furthermore, auxiliary contacts, undervoltage releases and shunt releases are primarily modular and can be easily customized and integrated with additional functions as required. Although the compact structure of the molded case circuit breaker limits serviceability, it provides the convenience of manual operation and larger capacity electric switching options to meet the diverse needs of users in different applications.
MCCB also offers a choice of electronic overcurrent releases, which are divided into two types: Class A and Class B. Class B MCCB provides advanced three-level protection features, making it suitable for applications with high reliability and performance requirements. On the other hand, Class A MCCB with thermal magnetic tripper has a higher market share due to its cost-effectiveness. Both types of MCCB are ideally suited for a variety of industrial and commercial applications, providing necessary electrical fault protection and ensuring the safety and reliability of electrical systems.
In summary, plastic case circuit breakers (MCCBs) are key components in modern electrical systems, providing advanced protection features and reliable performance. With its sealed plastic housing, customizable modular components and a range of trip unit options, the MCCB is ideal for a variety of load capacities and applications. Whether protecting branch circuits or providing advanced level 3 protection, MCCBs are versatile and essential tools for ensuring the safety and reliability of electrical systems.
