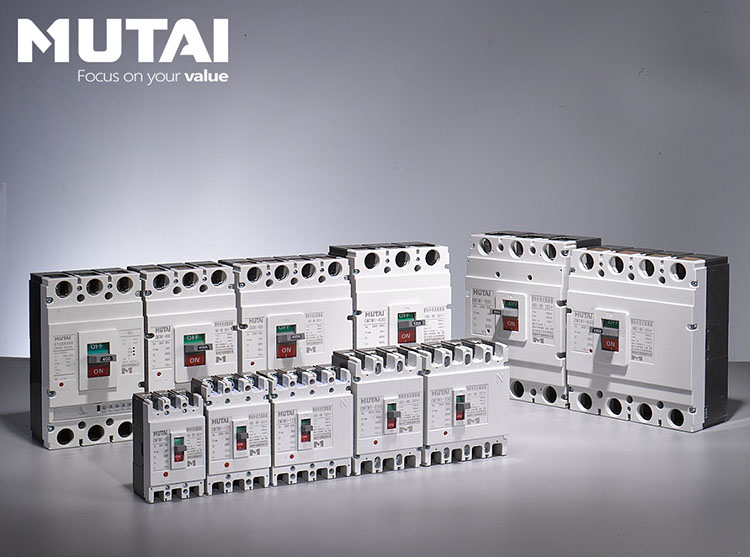

Molded case circuit breaker (MCCB) is an important part of the low-voltage power distribution industry. Its key function is to cut off or isolate fault current within the normal and rated range to ensure the safety of lines and equipment. One of the key aspects of an MCCB is its tripping mechanism, which plays a vital role in responding to fault conditions and preventing potential hazards.
MCCBs have several common trip modes, each designed to address a specific type of fault condition and operating requirements. The first method is single magnetic tripping, in which the circuit breaker only trips when a short circuit fault occurs in the line. This type of trip is typically used on heater circuits or motor circuits with overload protection to provide the necessary protection for these applications.
Thermal-magnetic tripping, also known as compound tripping, is another important mode of molded case circuit breakers. This mode triggers the circuit breaker to trip when a short circuit fault occurs on the line or the line current exceeds the rated current for a long time. This versatile trip mode is commonly used in general power distribution scenarios, providing comprehensive protection for a wide range of applications.
In addition to these traditional tripping modes, electronic tripping has become a sophisticated technology for MCCBs. Circuit breakers equipped with electronic trip units have adjustable magnetic trip current, thermal trip current and trip time, which enhances the flexibility and accuracy of protecting electrical systems. While electronic tripping offers wider applicability, it is worth noting that MCCBs employing this technology typically cost more due to their advanced features.
In addition, specialized circuit breakers can be used to protect motor circuits, with magnetic tripping currents typically exceeding 10 times the rated current. This design helps prevent peak currents during motor starting, ensuring smooth and reliable operation.
With its diverse tripping functions, molded case circuit breakers provide a comprehensive solution for the protection of low-voltage distribution systems. Whether it is single magnetic tripping, thermal magnetic tripping, electronic tripping or motor circuit protection, there is a molded case circuit breaker that meets the specific needs of every application, making it an indispensable asset for ensuring the safety and reliability of electrical systems.
