Is the air circuit breaker manual or electric?

The air circuit breaker (ACB) is a relatively complex switch that plays a vital role in electrical systems. A common question that comes up is whether the air circuit breaker is manual or electric. In fact, the answer is not black or white, but a combination of both. The function of the air circuit breaker determines whether it is manual, electric or automatic. Some functions are electric and some are manual.

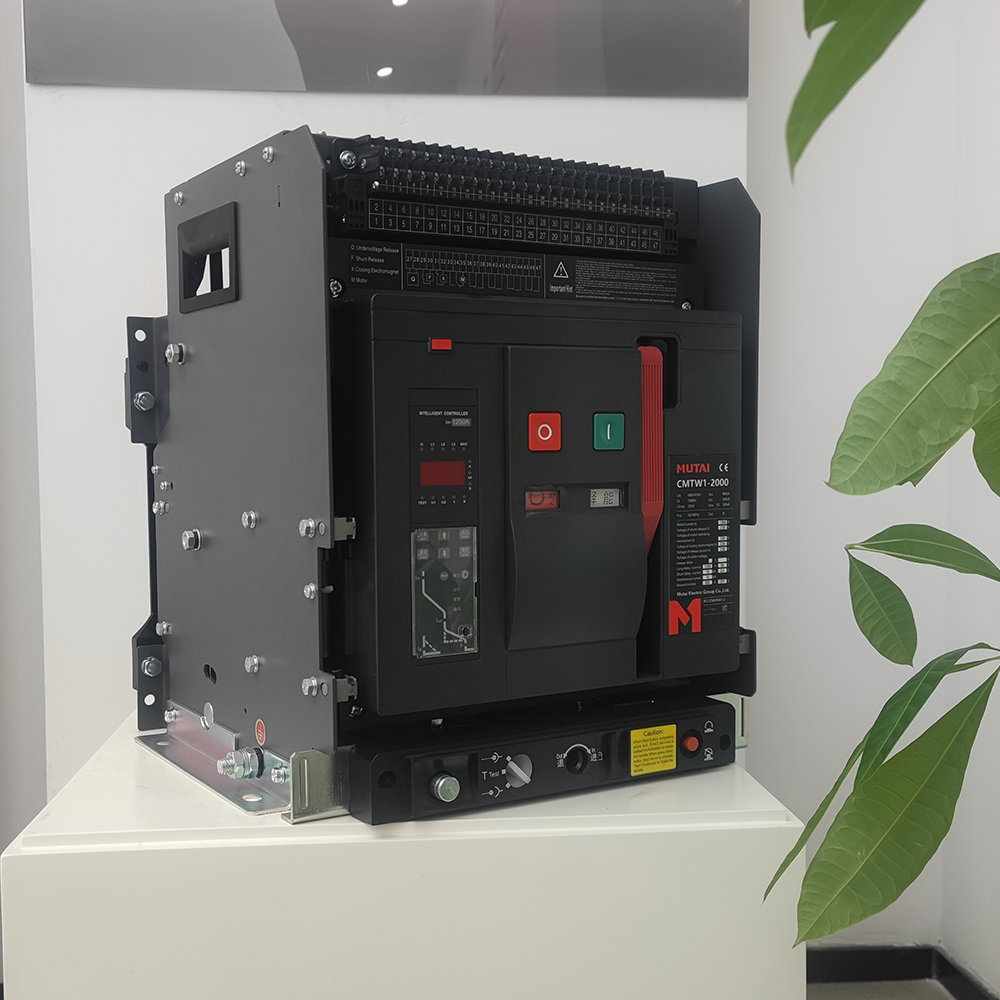

Take Mutai Electric’s CMTW1-2000 as an example. This product has electric (automatic) functions such as pre-energy storage for electric operation, undervoltage tripping, and overload tripping. These features are critical to ensuring smooth, safe operation of the air circuit breaker. It has an electrically operated pre-energy storage function. The circuit breaker can automatically pre-store energy when the required power is turned on to ensure that it has the energy required for closing. Undervoltage trip and overload trip features automatically trip the circuit breaker under certain conditions, providing additional protection against potential hazards.

Simply put, the closing function of the basic air circuit breaker is manual and requires manual operation. However, the opening function can be achieved by remote electric closing and opening operations using shunt closing electromagnets usually equipped in circuit breakers. In addition, the circuit breaker host computer can also set automatic closing and opening conditions to provide options for automatic control when needed.

To sum up, the function of the air circuit breaker determines whether it is manual or electric. The combination of manual and electric functions enables the flexibility and versatility required for a variety of electrical systems. Whether for industrial, commercial or residential use, the right combination of manual and electric functions in an air circuit breaker is critical to ensuring safe and efficient operation. With the Mutai Electric CMTW1-2000, users can benefit from its electric functionality while having the option of manual operation when necessary, making it a reliable and efficient choice for air circuit breaker applications.
