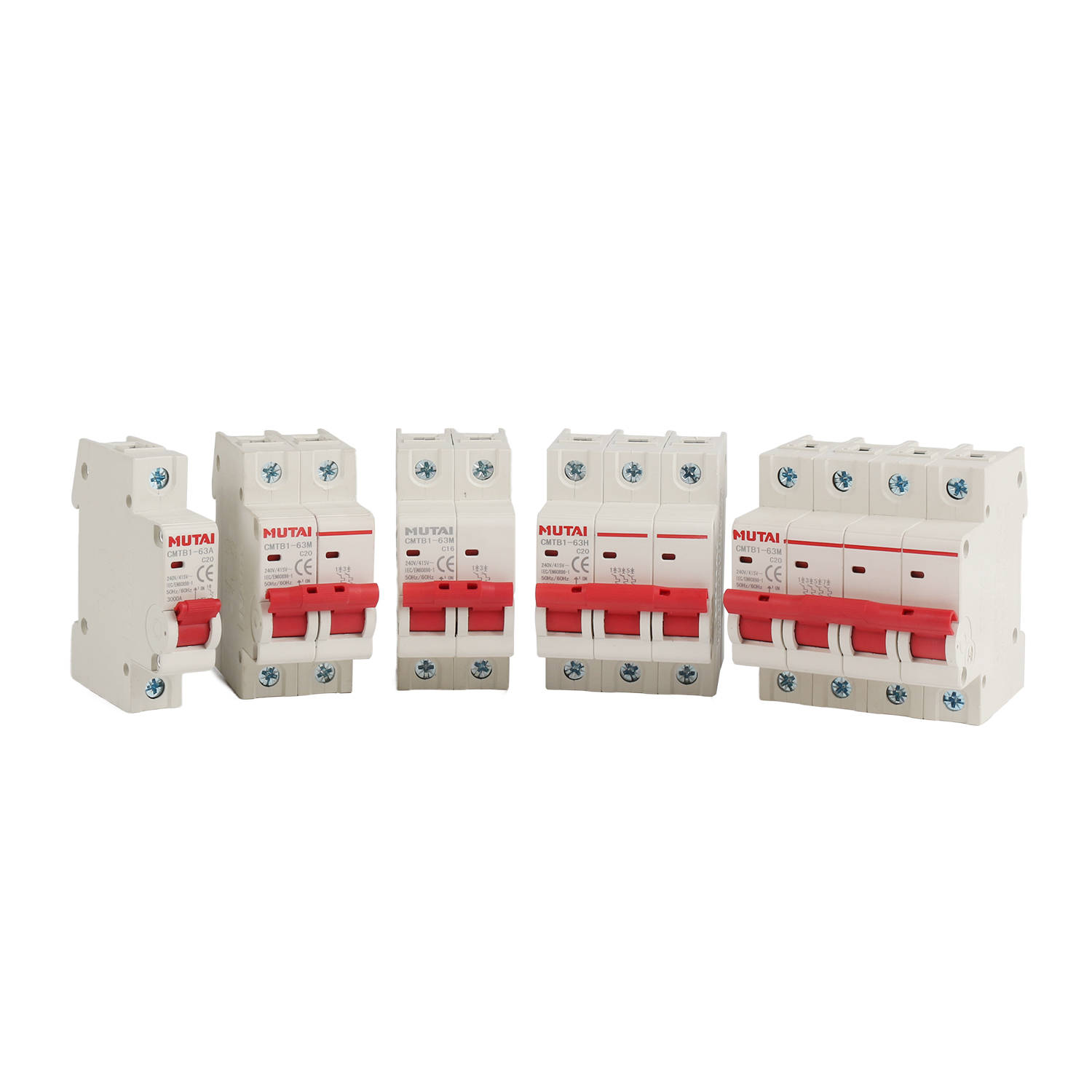

Miniature circuit breakers (MCB) play a vital role in protecting circuits and equipment. These miniature circuit breakers are designed to automatically interrupt the flow of electricity when a fault is detected, preventing potential damage to the system and ensuring personnel safety. An important aspect of the MCB is the trip curve type, which determines the response time and current rating of the circuit breaker when it trips. Understanding the different types of trip curves is critical to selecting the correct MCB for a specific application.
The tripping curve of a small circuit breaker refers to the relationship between the magnetic tripping current and the rated current. A variety of trip curves are available, each suitable for different types of loads and applications. The most common trip curve types for MCBs include Type A, Type B, Type C and Type D. Each type has specific characteristics and is suitable for different scenarios, from protecting semiconductor electronic circuits to heavy load starting locations.
Type A tripping curve is characterized by a magnetic tripping current of (2-3) In. It is suitable for protecting semiconductor electronic circuits, measurement circuits of low-power power transformers, or systems with long lines and small currents. Type A MCBs are designed to provide fast response to low-level faults, making them ideal for sensitive electronic equipment and circuits that require precise protection.
The magnetic tripping current of type B tripping curve is (3-5) In. These MCBs are suitable for purely resistive loads and low voltage lighting circuits. They are commonly used in home power distribution systems, household appliances and personal safety protection. Type B MCBs provide effective protection for a variety of residential and commercial applications.
The magnetic tripping current of Type C tripping curve is (5-10) In. These MCBs are suitable for inductive loads and high-sensitivity lighting circuits. They are commonly used to protect distribution lines and lighting circuits with high conduction currents. Type C MCBs are versatile and suitable for use in various industries where precise protection of inductive loads is required.
Type D tripping curve is characterized by a magnetic tripping current of (10-20) In. These MCBs are suitable for systems with highly inductive loads and large inrush currents. They are often used to protect equipment with high inrush currents, such as transformers and solenoid valves. Type D MCBs are designed to withstand heavy loads and provide reliable protection in industrial environments.
In summary, understanding the tripping curves of different types of miniature circuit breakers is crucial to selecting the correct MCB for a specific application. Whether protecting sensitive electronic circuits or heavy industrial equipment, MCBs with the appropriate type of trip curve are critical to ensuring the safety and reliability of electrical systems. With their diverse capabilities, MCBs remain an integral part of electrical safety and protection in various industries.
