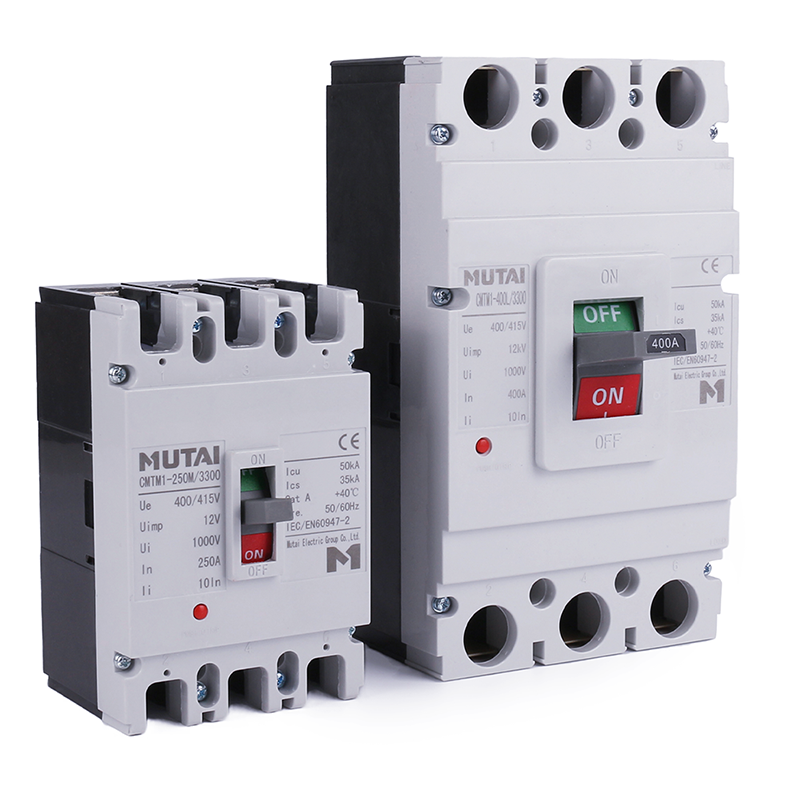

When selecting a molded case circuit breaker (MCCB) for your electrical system, you need to pay attention to several important attributes. One of these properties is the rated ultimate short circuit breaking capacity. This property is critical to ensuring the safety and reliability of electrical systems, and it is important to understand its importance when selecting MCCB.
The rated ultimate short-circuit breaking capacity refers to the maximum level at which a circuit breaker can safely break short-circuit current under specified conditions. This feature is critical to protecting electrical systems from the potentially damaging effects of short circuit faults. After a prescribed test procedure, a circuit breaker must be able to continue to carry its rated current under any circumstances. This ensures that the electrical system remains operational even in the event of a short circuit failure.
In addition to the rated ultimate short-circuit breaking capacity, the rated operating short-circuit breaking capacity of the molded case circuit breaker must also be considered. This refers to the breaking capacity under specified conditions. It should be noted that the circuit breaker must continue to carry its rated current after following the specified test procedures. This property is critical to ensuring the long-term reliability and safety of electrical systems.
It is worth noting that many domestic circuit breaker manufacturers currently provide plastic case circuit breakers with different levels of short-circuit breaking capabilities for the same frame-level rated current. This allows users to select the circuit breaker that best meets their specific needs and requirements. When selecting a molded case circuit breaker, it is important to ensure that the circuit breaker’s ultimate short-circuit breaking capacity is sufficient for the expected short-circuit current of the power line. This eliminates the need to artificially add insurance factors, which can lead to unnecessary waste.
The value of the rated operating short-circuit breaking capacity may vary, with most circuit breakers providing capabilities ranging from 25% to 75% of the rated ultimate short-circuit breaking capacity. Some circuit breakers even provide 100% of the rated operating short-circuit breaking capacity. It is important to consider these values carefully when selecting an MCCB because they directly affect the reliability and performance of the electrical system.
In summary, the rated ultimate short circuit breaking capacity is a key attribute that should be carefully considered when selecting an MCCB for your electrical system. By understanding the importance of this property and its impact on electrical system safety and reliability, you can make an informed decision when selecting the MCCB that best meets your specific needs and requirements. Because of the variety of options available from domestic circuit breaker manufacturers, it is important to carefully evaluate the short-circuit breaking capabilities of different MCCB to ensure that you select the option that best suits your electrical system.
