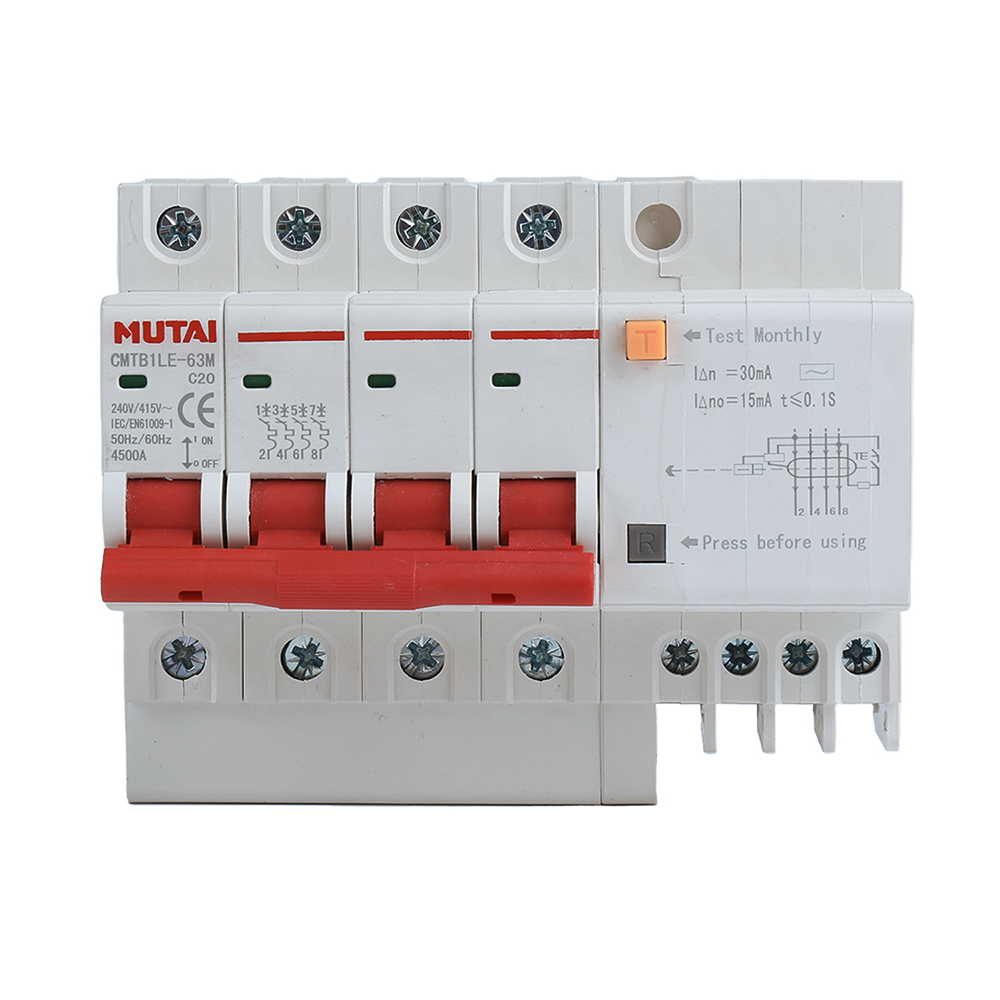

Residual current circuit breaker (RCBO) with overcurrent protection function is an important component to ensure the safety of low-voltage systems or equipment. It can not only prevent electric shock accidents and protect personal safety, but also monitor the grounding insulation condition. However, it is important to understand that installing an RCBO does not guarantee foolproof safety. We must focus on prevention and implement various safety technical measures to achieve safe electricity use. RCBO is only an additional protection among the basic protection measures. Careful management and publicity and education on safe electricity use are the fundamental guarantee of safety.
One thing to remember when using an RCBO is that it can only protect the human body in the event of a single-phase electric shock accident. If the human body is insulated from the earth and comes into contact with two phase lines or one phase line and one neutral line, the RCBO will not operate. This means it will not provide protection in this situation. Therefore, users should be aware of this limitation and take additional precautions to minimize the risk of such accidents.
Another precaution to consider is circuit insulation behind the RCBO mounting point. It is critical that the circuit is well insulated from ground. If the insulation to the ground is reduced and the leakage current exceeds a certain value, usually about 15mA, the RCBO will act and cut off the power supply. This emphasizes the importance of maintaining good insulation from ground to prevent faults and ensure proper power consumption. Insulation should be checked and maintained regularly to avoid any potential hazards.
When the low-voltage power grid implements hierarchical protection, it is crucial to use delayed RCBO for upper-level protection. The breaking time of the delay type RCBO should be longer than the action time of the lower level protector, generally 0.1 to 0.2 seconds. This precaution ensures a more comprehensive and coordinated approach to protection within the grid. By following this guideline, you can mitigate potential risks and hazards and improve the overall safety of your electrical system.
In summary, while RCBOs are critical for protecting personal safety and monitoring ground insulation in low-voltage systems or equipment, it is also important to understand their limitations and take the necessary precautions. Users should focus on prevention and implement various safety technical measures to ensure safe use of electricity. Only by carefully managing electricity consumption, maintaining good insulation, and implementing graded protection measures can we achieve the fundamental guarantee of safe electricity use.
