Understand the meaning and role of MCB in electrical (1)

First point of view: What is MCB

MCB, also known as miniature circuit breaker, is a small circuit breaker that plays a vital role in electrical systems. Unlike traditional fuses, MCBs can be reused, providing enhanced protection against electrical faults caused by circuit overloads or short circuits. Miniature circuit breakers ensure the safety and reliability of electrical devices by manually or automatically controlling circuit switching.

Second view: How MCB works

The working principle of MCB is based on the thermal magnetic delay mechanism. When current flows through the MCB, a magnetic field is generated. If the current reaches the preset value, the MCB automatically trips and cuts off the circuit. Additionally, thermal elements in the MCB detect temperature changes. If the temperature exceeds a preset value, the MCB will trip again, preventing the circuit from overheating.

Third Perspective: Types of Miniature Circuit Breakers

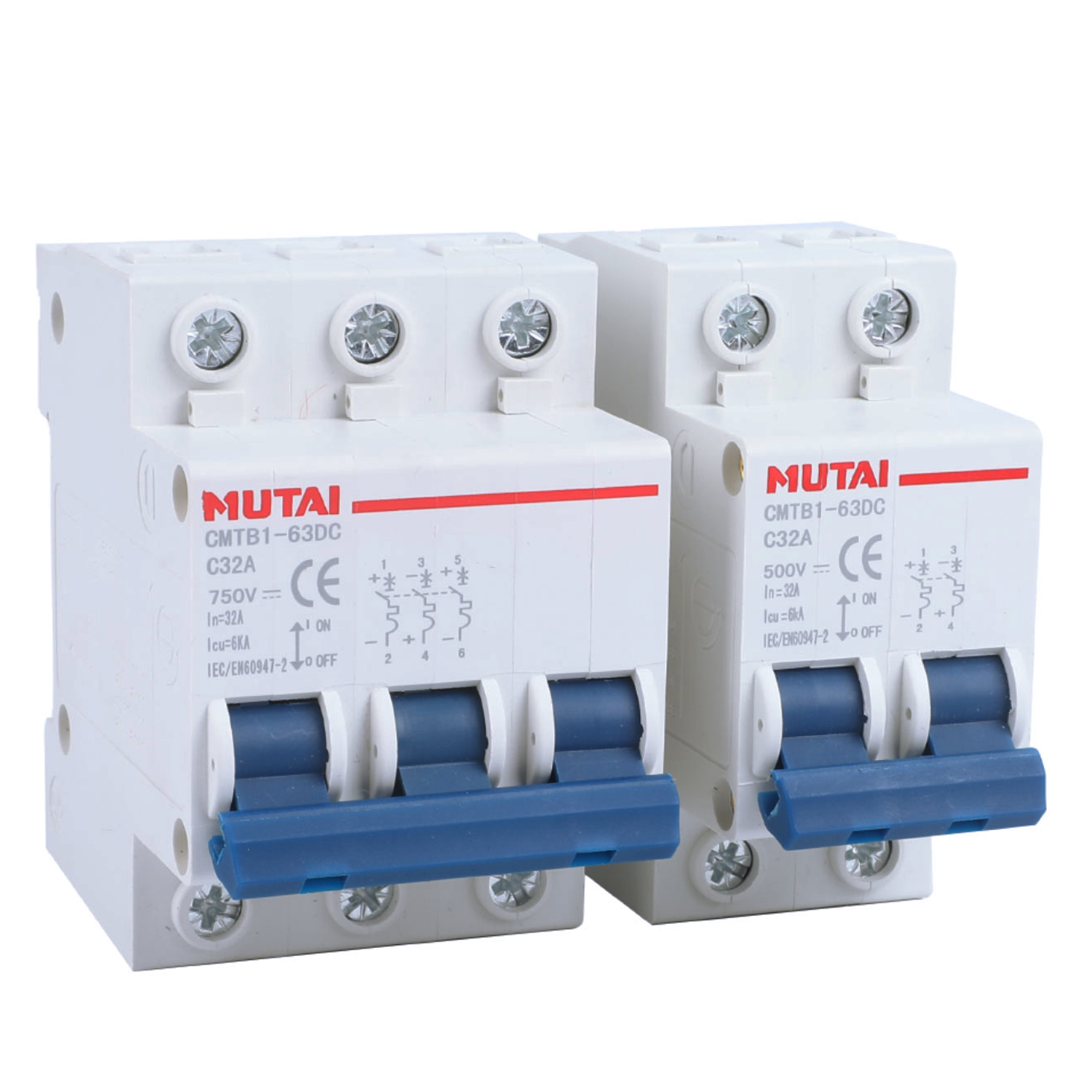

MCBs are available in various models based on their rated current, such as 6A, 32A, 64A, etc. They are also classified based on the number of poles they possess, ranging from unipolar, bipolar, to three-pole configurations. In addition, the rated breaking capacity of miniature circuit breakers is also different, including 4KA, 6KA, 8KA, etc.

Fourth point of view: Advantages of MCB

MCBs offer many advantages over traditional fuses. First, miniature circuit breakers are small, lightweight, and easy to install and replace. Its compact design makes it ideal for modern electrical installations. Secondly, miniature circuit breakers can be reused many times, making them more economical and practical. Unlike fuses, which need to be replaced after every failure, MCBs can simply be reset, saving time and resources.

In addition, MCB provides enhanced security and reliability. They can manually or automatically interrupt a circuit when necessary, preventing potential damage or dangerous situations. With fast response, MCB ensures quick disconnection of the circuit, protecting electrical equipment from damage.
